RF CONNECTOR AND CABLE SOLUTIONS
Test point system(BDRA,BE40A,BQRA)
50 Ohm RF solutions (SMA, SMB5, MCX, MMCX,SMP, TNC,BNC, UFL and WFL systems)
75 Ohm RF solutions
RF Adapter and cabel solutions
Test point system(BDRA,BE40A,BQRA)
Specifications
- Samtec’s Bulls Eye® product family enable optimized performance
- 50 GHz and 20 GHz high-performance test point systems (to 65 GHz in development)
- Small footprint design significantly saves space on the board
- Microstrip (50 GHz) or stripline (50 & 20 GHz) PCB transmission
50 Ohm RF solutions (SMA, SMB5, MCX, MMCX,SMP, TNC,BNC, UFL and WFL systems)
Specifications
- Performance up to 40 GHz
- RG 174, RG 316 or RG 178 cable terminationsboard thicknesses
- Simple snap-on coupling
- RG 405 (.086″ DIA) semi-flexible or 25 AWG rugged solid dielectric microwave cable termination S
- MA 2.92 terminations to 26.5 GHz
- SMA, AFI and Bulls Eye® terminations also available

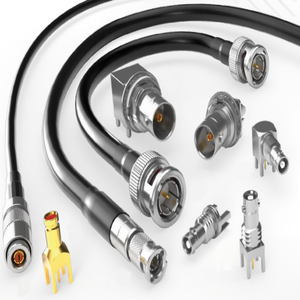

75 Ohm RF solutions
Specifications
- BNC, HD-BNC™, DIN 1.0/2.3, or SMB. Cables include: RG 179, RG 6, Belden 1694A, or Belden 1855A
- Optimized for 12G-SDI Broadcast Video solutions
- RG 179, RG 6 or Belden 1694A cables available
- DIN 1.0/2.3 connectors have push-pull coupling
- Available with RG 179, RG 6, Belden 1694A or Belden 1855A cables

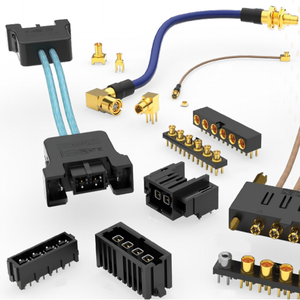

RF Adapter and cabel solutions
Specifications
- RF MH 081/MH/13
- RF 174/RF 316,178,058,316 (CABLES RADIO RF ADAPTORS SMBS,MMCX,MCX,BNCS,ADPS Freq.)(50 Ohm)
- RF A6T ,B67,179,B87(75 R CABLE’S)
- RF SMB7H,DINA,(75 OHM Board Level Interconnects)
- RF 12G-SDI HDBNC,BNC7T UPTO 100 Ohm.
- 28 AWG shielded twisted pair cable
